Paperless Recorders
Paperless Recorders
Experience the flexibility, security and networking capabilities of Honeywell’s X-Series paperless recorders. The eZtrend, Minitrend, Multitrend and DR Graphic Recorders feature easy configuration, remote viewing and control, touch-screen navigation, high-capacity storage, custom screen design, diagnostics, software support and more.
|
|

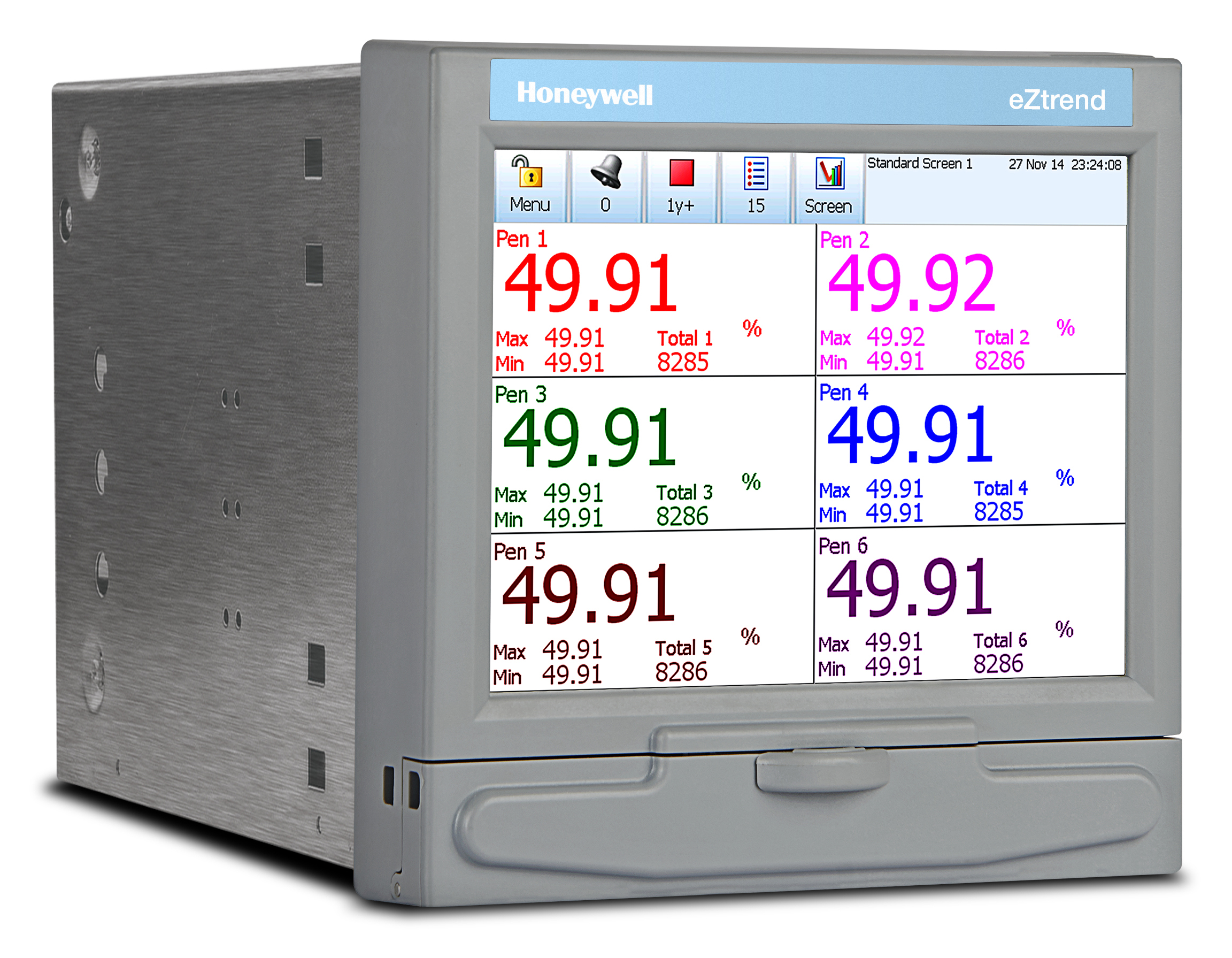

eZtrend |

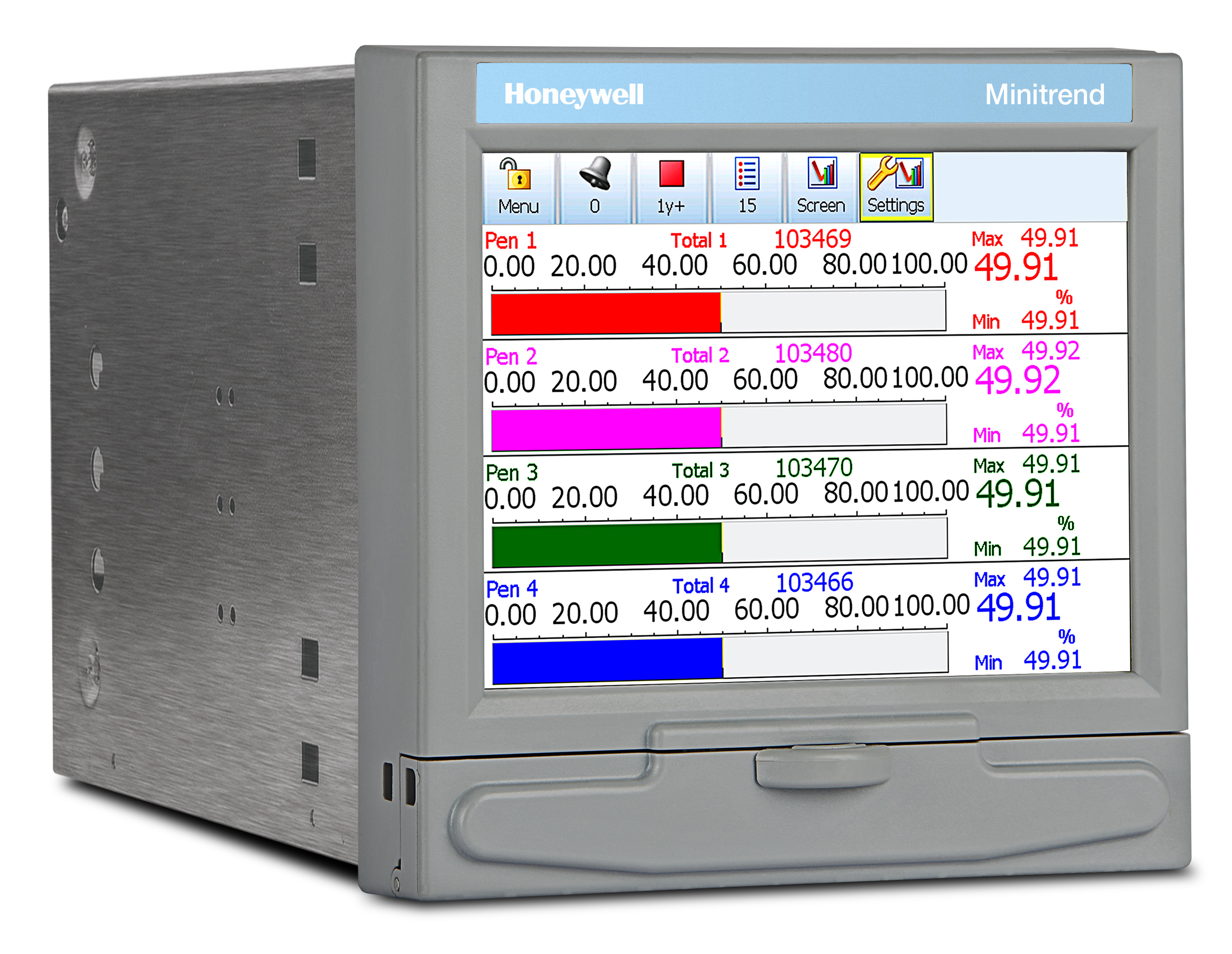

Minitrend |

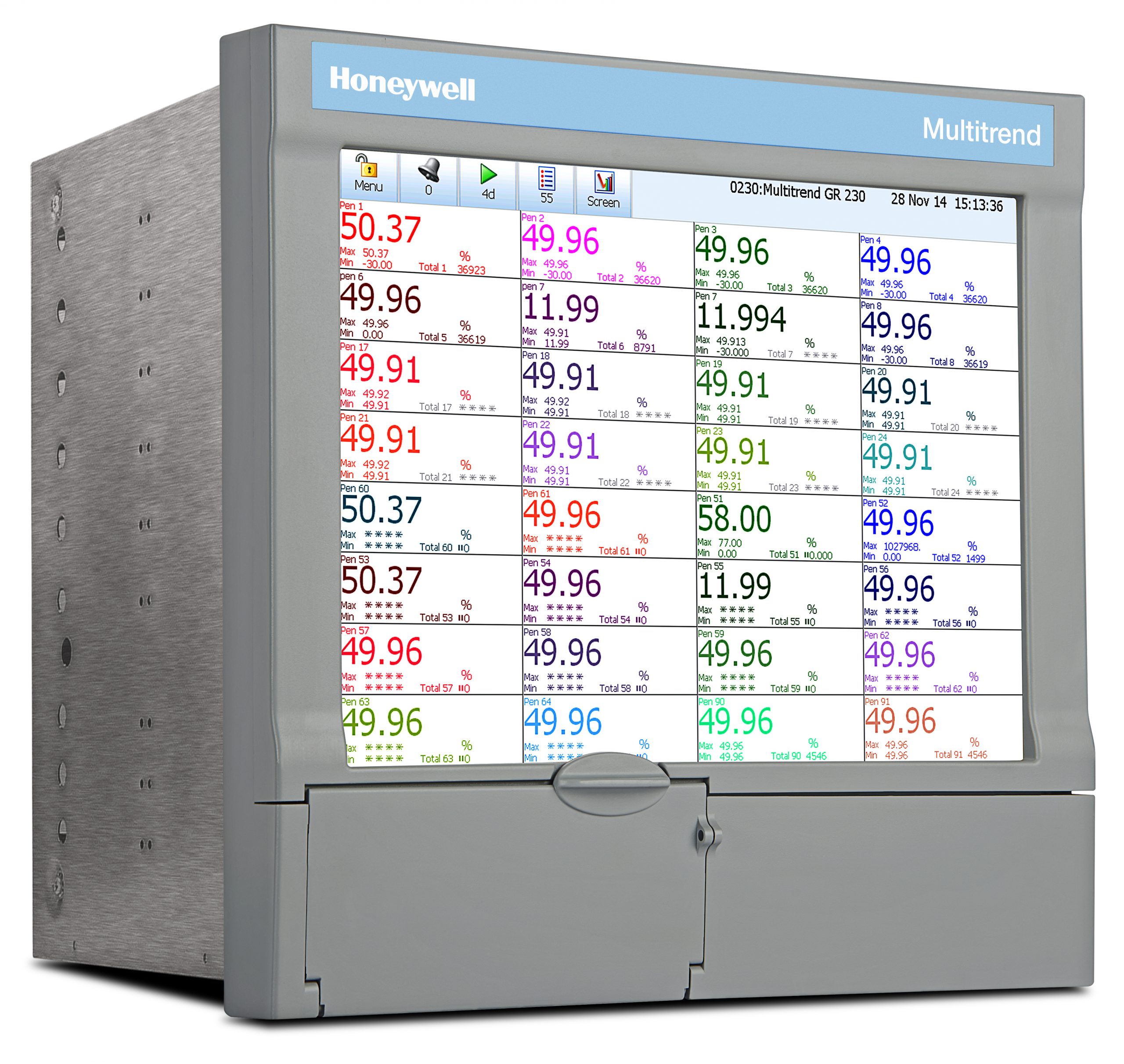

Multitrend |

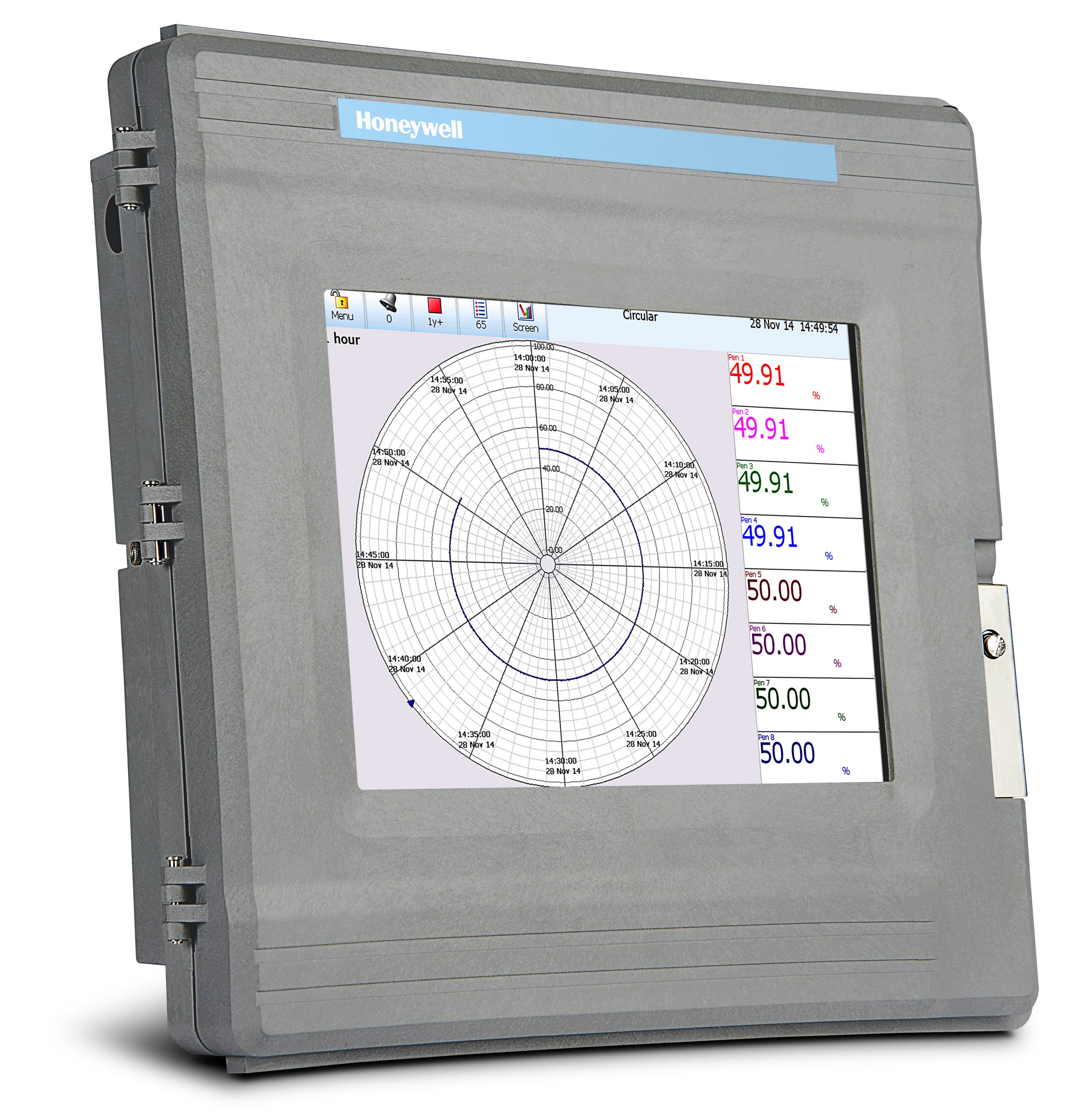

DR Graphic Recorders |
|---|---|---|---|---|
|
Displays |
145mm (5.7 in) Colour LCD (Active TFT) QVGA |
145mm (5.7 in) Colour LCD (Active TFT) QVGA |
307mm (12.1 in) Colour LCD (Active TFT) XGA |
307mm (12.1 in) Colour LCD (Active TFT) XGA |
|
Analogue Inputs |
Up to 16 |
Up to 16 |
Up to 16 |
Up to 16 |
|
Data Storage |
SD card/USB memory key |
SD card/USB memory key |
SD card/USB memory key |
SD card/USB memory key |
|
Sample Rate |
100/200/500ms |
20ms (liner input) / 100ms |
20ms (liner input) / 100ms |
20ms (liner input) / 100ms |
|
Digital I/O |
Up to 8DI/8DO |
Up to 16DI/16DO |
Up to 48DI/48DO |
Up to 16DI/16DO |
|
Networking |
Ethernet |
Ethernet/RS485 |
Ethernet/RS485 |
Ethernet/RS485 |
|
Math Functions/Math Scripts |
Yes/No |
Yes/Yes |
Yes/Yes |
Yes/Yes |
|
Reference Accuracy |
0.1% Typical-T/C |
0.1% Typical-T/C |
0.1% Typical-T/C |
0.1% Typical-T/C |
|
Configuration |
PC or front panel |
PC or front panel |
PC or front panel |
PC or front panel |
|
Remote Viewing |
Yes |
Yes |
Yes |
Yes |
|
|
Optimise your data acquisition experience when you complement your paperless recorders with TrendManager Software Suite.
