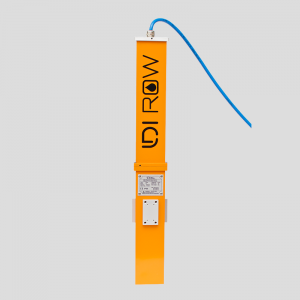

ROW Aluminium
ROW is a non-contact sensor for detecting oil on water. Highly accurate and easy to maintain, it detects and alerts you to unsuspecting oil spills. It provides 24/7 industrial and environmental water monitoring, whether at effluent discharge or influent intake points.
Day or night, in arctic cold or scorching heat, ROW helps you pinpoint the polluter, act and avoid lasting damage.
Robust IP68 certified hermetic design and 5-year LED lifetime. Low power consumption of <2W with optional remote operation using solar panels and battery.
Easier installation, no water contamination and no maintenance.
Refined for over 20 years in research and development, ROW’s photo-optics can detect oil films down to a 1μm layer, while minimising false alarms.
Technical Specifications
| Model | O-2311A |
| Sensitivity | >1 μm (micron) oil film |
| Oil Detection | Medium oils (diesel, lubricants etc.) and heavy oils (crude, bunker fuels etc.) |
| Range | Up to 10m [33 ft] above surface |
| Operation Temperature | -30°C to + 60°C [-22°F to 140°F] |
| Enclosure | IP68, hermetically sealed, weather proof Anodised Aluminium, powder coating, purged (Ar) |
| Dimensions | 590 x 83 x 80 mm [23.2 x 3.3 x 3.1 in] device dimensions Comes with mounting plates for installation |
| Weight | 1.8kg [3.97 lbs] |
| Power Options (input) | 12 VDC (10V-30V) as standard
Optional: 110/220 VAC 60/50Hz AC/DC Adapter, solar/battery options |
| Power Usage | <2 Watts (DC) |
| Light Source | Pulsed UV LED |
| LED Lifetime | 5 years typical. LED replacement afterwards. |
| Output | Relay contacts, RS-485, 4-20 mA (as standard) |
| Communication Options |
Custom Solutions: Optional adapters available. Contact our sales engineer for additional information
|
| User interface | ROW Configurator for setup and adjustment ROW Manager for network visualisation |
| Certifications | CE: EN 61000-6-2, 61000-6-3, 61326-1, 61000-4-2, 61000-4-5, 61000-4-6, 61000-4-8, EN 61010-1 IP68: EN 60529 US EPA: (EPA/530/UST-90/009) |
| Warranty | 2-Year Factory Warranty as standard, supported worldwide |
