OVERVIEW

Portatank® is the ideal solution for non-invasively identifying levels of water and clean liquids in large industrial tanks.

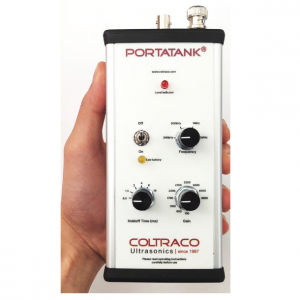

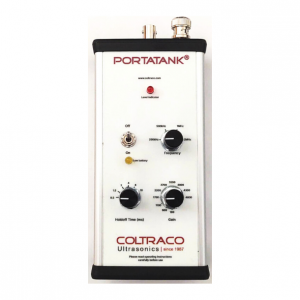

An innovative handheld tool to accurately identify the level of contents in large containers between 0.5-15 metre width.

QUICK TESTING

Easy to use, instant liquid level detection with very clear LED results for liquid indication

VERSATILE

Applicable for a wide range of tanks & liquids

NON-INVASIVE

Testing through the outer wall (no opening required)

ACCURATE

To +/-10mm with very clear LIQUID / NO LIQUID LED results

SAFE

Non-invasive, non-intrusive – suitable for testing hazardous liquids

FLEXIBLE

Suitable for a wide range of tanks and liquids, no installation time or costs required

NO RISK

Measures levels of fluids, particularly hazardous liquids, where the tank cannot be opened for safety reasons and an internal fixed level indicator cannot be installed

NO DOWNTIME

Liquid level measurement can be taken when the tank systems are “live”

COMPLIMENTARY

Can work alongside fixed level indicators to verify the accuracy of the measurements

Quickly, safely, and easily identify the liquid level in tanks

    • Tank Width Range: 0.5 metres – 15 metres
    • Tank Wall Material: Most common types such as steel, plastic, aluminium etc.
    • Liquid types: Most standard industrial liquids. E.g. water and oils

– Fire Safety Engineering

– Energy and Power Generation

– Chemicals

– Petrochemicals

– Food & Beverage Processing

– Pharmaceuticals

– Water Treatment Facilities

– Transformer Oil Level

TECHNICAL SPECIFICATIONS

Dimensions Main Unit: (H)168mm x(W)80mm x(D)45mm
Main Unit: 520 grams (with batteries)
Accuracy

+/- 10mm or +/-5mm (sensor dependent)

Verifiable Agents

Water and most clean liquids (get in touch for more details)

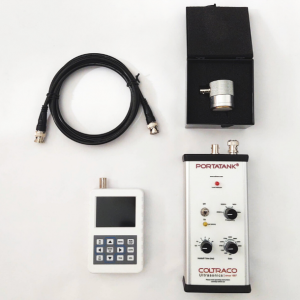

Sensor Options

200 kHz, 500 kHz (included as standard), 1 MHz, 2 MHz connected by BNC connector

Operating Temperature

-20°C to +70°C (68°F to 158°F)

Display Visual LED indication
Warranty Main Unit: 3 Years Warranty
Sensor: 1 Year Warranty
Power 4 x 1.5V AA batteries
Certificate Manufactured in UK with ISO 9001:2015 registered company
