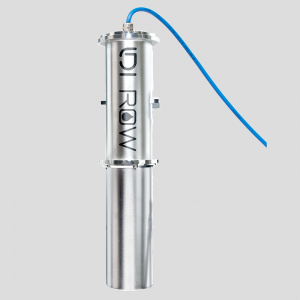

ROW Stainless Steel
ROW Stainless steel is perfect for installations in marine environments or corrosive atmospheres as it successfully balances cost-effectiveness and rugged design in a stainless steel (316L) enclosure.
ROW SS is much more cost-effective than a ROW ExD, yet provides the same flexibility and capability as our Aluminium ROW.
IP68 certified non-contact oil detector, using UV fluorescence method — highest IP rating on the market.
Outstanding detection range of up to 10m. Also available in a long-range version up to 30m.
Advanced software algorithms are calibrated to detect oil down to a single micron layer while minimising false alarms.
The ROW can connect seamlessly to your preferred telemetry monitoring devices whether using RS-485 Modbus, 4-20mA PLC (SCADA), or a simple alarm relay.
ROW Light Fraction is an optional, well-sought-after oil detector that’s specially designed for detecting light, medium and heavy oil fractions across various applications and industries. It provides top-notch performance, making it the most reliable oil detection you can find on the market.
Technical Specifications
| Model | O-2311S (Stainless Steel) O-4501S (Light Fraction) |
| Sensitivity | >1 μm (micron) oil film |
| Oil Detection | O-2311S (Stainless Steel) – Medium oils (diesel, lubricants etc.) and heavy oils (crude, bunker fuels etc.) O-4501S (Light Fraction) – Light (kerosene, jet fuel etc.), including medium and heavy oils |
| Range | up to 10 m [33 ft] from surface; Light Fraction only 5 m [16 ft] |
| Operation Temperature | -30˚C to +60˚C [-22˚F to 140˚F] |
| Enclosure | IP68, hermetically sealed, weather-proof, electropolished stainless steel 316L, purged (Ar) |
| Dimensions | 686 x 139 x 139 mm [27 x 5.5 x 5.5 in] device dimensions Comes with external metal bracket for mounting |
| Weight | 9.0 kg [19.8 lbs] |
| Power Options (input) | O-2311S (Stainless Steel): 12 – 24 VDC (10V – 30V) O-4501S (Light Fraction): 12 VDC only Optional: 110/220 VAC (60/50 Hz) AC/DC adapter, 24 to 12 VDC adapter, or solar/battery options |
| Power Usage | <2 Watt (DC) |
| Light Source | Pulsed UV LED |
| LED Lifetime | 5 years typical. LED replacement afterwards |
| Output | Relay contacts, RS-485, 4-20 mA (as standard) |
| Communication Options |
Custom solutions: optional adapters available. Contact our sales department for more information.
|
| User Interface | ROW Configurator for setup and adjustment ROW Manager for network visualisation |
| Certifications | CE: EN 61000-6-2, 61000-6-3, 61326-1, 61000-4-2, 61000-4-5, 61000-4-6, 61000-4-8, EN 61010-1 IP68: EN 60529 US EPA: (EPA/530/UST-90/009) |
| Warranty | 2-year factory warranty as standard. Supported worldwide. |
