ROW ATEX EXD
ROW ATEX EXD oil spill detector is designed to detect oil contamination in hazardous areas where ignitable concentrations of flammable gases, vapours or mists often exist.

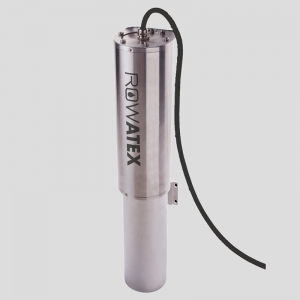

ROW ATEX EXD Oil Detector is encased in a flame-proof (explosion-proof) DNV-certified enclosure made of 316 stainless steel, which is acid and corrosion resistant, making it ideal for the toughest environments.
IP68-certified non-contact Ex D Oil Detector, using UV fluorescence method, the highest rated in the market.
Outstanding detection range of 8m — twice the distance compared to similar products on the market.
Calibrated advanced software algorithms to detect oil down to a single micron layer while minimising false alarms.
ROW ATEX EXD Oil Detector can be installed within a network of LDI ROWs and connect seamlessly with third party telemetry options using RS485, 4-20mA PLC, or a simple alarm relay.
The best-in-class ROW ATEX EXD is now ATEX and IECEx-certified, ensuring world-class performance and reliability perfect for your situation. View certificates here.
ROW Light Fraction is an optional, well-sought-after oil detector that’s specially designed for detecting light, medium and heavy oil fractions across various applications and industries. It provides top-notch performance, making it the most reliable oil detection you can find on the market.
Tech Specifications
| Model | O-2301E (ATEX EXD) O-4501E (Light fraction) |
| Sensitivity | >1 μm (micron) oil film |
| Oil Detection | O-2301E (ATEX EXD) – Medium oils (diesel, lubricants etc.) and heavy oils (crude, bunker fuels etc.) O-4501E (Light Fraction) – Light (kerosene, jet fuel etc.), including medium, & heavy oils |
| Range | Up to 8 m [26 ft] from surface; Light Fraction only 5 m [16 ft] |
| Operation Temperature | -30˚C to +60˚C [-22˚F to 140˚F] |
| Enclosure | IP68, hermetically sealed, weather proof Stainless steel 316, Flameproof Enclosure, ATEX/IECEx Zone 1 II 2 G Ex d IIC T6 Gb, Class 1, Division 1, Groups CD |
| Dimensions | 677.5 x 132 x 132 mm [26.7 x 5.2 x 5.2 in] device dimensions Comes with external metal bracket for mounting |
| Weight | 12.2 kg [26.9 lbs] with sunshield extension |
| Power Options (input) | O-2301E (ATEX EXD): 12 – 24 VDC (10V – 30V) O-4501E (Light Fraction): 12 VDC only Optional: 110/220 VAC (60/50 Hz) AC/DC adapter, 24 to 12 VDC adapter, solar/battery options |
| Power Usage | <2 Watt (DC) |
| Light Source | Pulsed UV LED |
| LED Lifetime | 5 years typical. LED replacement afterwards |
| Output | Relay contacts, RS-485, 4-20 mA (as standard) |
| Communication Options |
Custom solutions: optional adapters available. Contact our sales department for more information.
|
| User Interface | ROW Configurator for setup and adjustment ROW Manager for network visualisation |
| Certifications | CE: EN 61000-6-2, 61000-6-3, 61326-1, 61000-4-2, 61000-4-5, 61000-4-6, 61000-4-8, 61010-1 US EPA: (EPA/530/UST-90/009) IP68: EN 60529 ROW ATEX EXD: EN/IEC: 60079-0, 60079-1 ATEX (Zone 1) II 2 G [DNV Presafe 20 ATEX 61463X] IECEx Ex d IIC T6 Gb [IECEx PRE 20.0044X] |
| Warranty | 2-year factory warranty as standard. Supported worldwide. |
